How to Program a Genie Remote and Keypad: Both Generations, Step by Step

Before Anything Else: Which Genie Do You Have?

Almost every failed Genie programming attempt fails at this step, and the reason is that Genie changed the entire user interface of the motor head partway through the product line. If you follow instructions written for the other generation, nothing you do will work, and nothing you do will tell you why.

There are two eras, and you can tell them apart in about five seconds by looking at the back of the motor head where the antenna wire comes out.

That is the whole fork, and it drives every instruction below. On the current generation you press and hold the Program button and you watch for blue and purple. On the 1995 to 2011 generation you press and release the Learn Code button once and you watch for a flashing red.

Note how those two are almost opposites. Hold versus tap. That is exactly why people who look up a video for the wrong generation end up convinced their remote is dead.

One more piece of vocabulary before we start. Genie calls its rolling code security system Intellicode, introduced in 1995. The current version is Intellicode 2. Overhead Door units use a parallel system marketed as Code Dodger, and the remote model families are widely cross-listed against each other, so a G3T-R and an O3T-BX are typically sold as equivalents. If you have an Overhead Door opener and the only instructions you can find say Genie, you are usually in the right place.

Programming a Genie Remote on a Current Generation Opener

This is the procedure for openers with the square Program button and the blue and purple LEDs.

1. Pull the battery tab on a new remote, or confirm the battery is good on an old one. A remote that will not program is very often a remote that will not transmit.
2. Press and hold the Program button on the motor head until the round LED turns blue, then release. On release, the round LED goes out and the long LED begins flashing purple. Purple flashing means the opener is listening.
3. Stand at least 5 feet away from the opener. This is not optional and it is covered in more detail below, because it is the single most common reason this fails.
4. Slowly press and release the remote button you want to use, two times.
5. Press and release the same button a third time. The door will move. That movement is the confirmation.

You have roughly 30 seconds from entering program mode to finish. If the window closes, the LED stops flashing and you start over from step two. Nothing is damaged by running out of time.

Two details in that sequence trip people up. The first is the word slowly. Rapid-fire pressing gets read as a single long transmission rather than as discrete presses, and the opener never counts to three. Give it about a second between presses. The second is that the third press activates the door. People expect a light blink and get a moving garage door instead, panic, and hit the button again mid-travel, which reverses it and makes them think the programming failed. It did not. Let the door finish.

Programming a Genie Remote on a 1995 to 2011 Opener

For the older generation with the single red LED:

1. Press and release the Learn Code button once. Do not hold it. The red LED will begin to flash.
2. Within about 30 seconds, press and hold the remote button you want to use for roughly 5 seconds, or until the opener responds.
3. The LED on the opener blinks and goes out, which confirms the remote was learned.

The critical difference from the newer procedure: here a hold on the Learn Code button does something completely different. Holding it until the LED stops blinking erases the entire memory. On the older generation, tap to teach and hold to wipe. Get those backwards and you have just deleted every remote in the house while trying to add one.

Why Standing Too Close Breaks Genie Programming

The 5 foot rule is the most counterintuitive instruction in the whole process and it is the one people skip, because every instinct says to stand right under the opener where you can see the light.

Genie specifies standing at least 5 feet away when programming remote buttons on Intellicode 2 openers, and it is there for a real reason. A remote transmitting at point blank range floods the receiver. The signal is too strong and too saturated for the receiver to cleanly decode the rolling code handshake it needs in order to store the remote. You are not sending a weak signal that fails to arrive. You are sending one so loud the receiver cannot read it.

The practical version: stand back near where your car would actually be parked. That is both the correct programming distance and a real world range test at the same time.

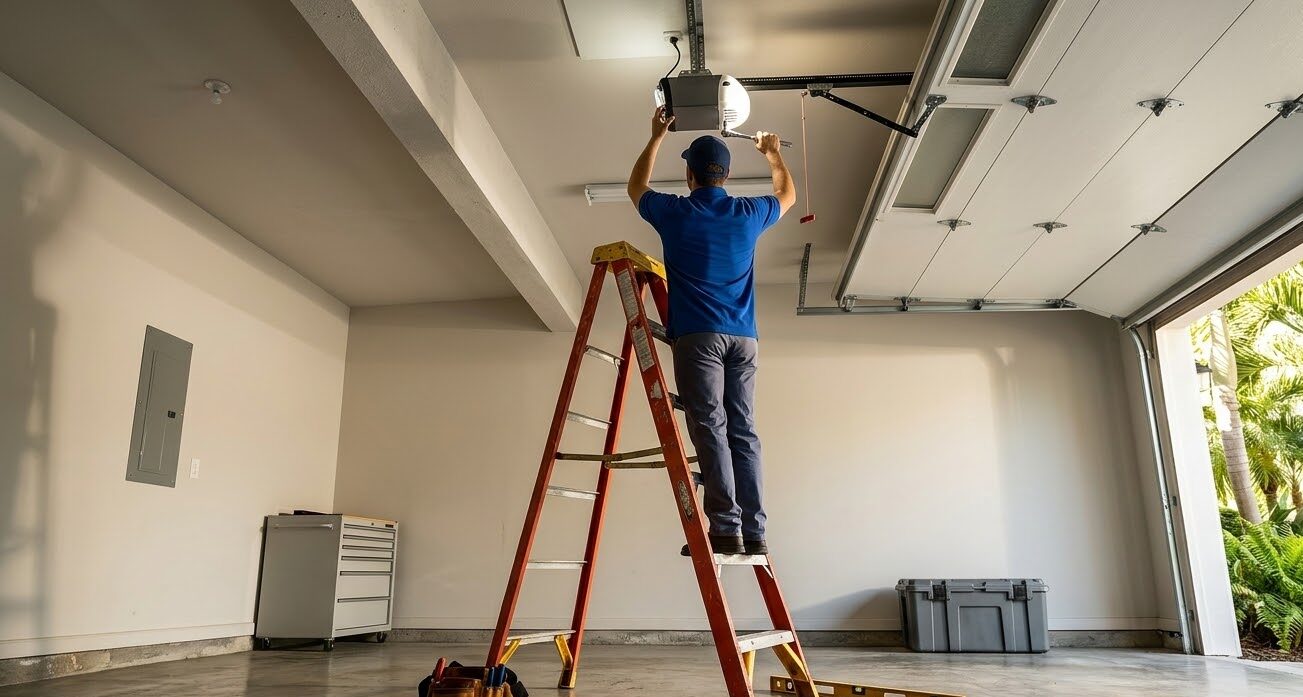

If you are on a ladder with your head next to the motor head, you are in the worst possible position, and this is the failure that sends most people to the store for a replacement remote they did not need.

Programming a Genie Keypad, Which Is a Two Part Job

Keypads confuse people because there are two separate operations and they have to happen in order. First you tell the keypad what its PIN is. Then you tell the opener to accept that keypad. Most failed keypad attempts are someone doing the second half without the first.

Part one, set the PIN on the keypad itself:

1. Press 3, 5, 7 in sequence.
2. Press the PROGRAM key. The LED will blink once per second.
3. Enter the PIN you want, 3 to 8 digits.
4. Press PROGRAM again. The LED blinks twice and shuts off. The PIN is now stored in the keypad.

Part two, pair the keypad to the opener:

1. At the motor head, enter program mode the same way you would for a remote. Current generation: press and hold the Program button until the round LED is blue, release, and watch for the long LED flashing purple. Older generation: press and release the Learn Code button once and watch for flashing red.
2. Go to the keypad and enter your PIN.
3. Press the up or down arrow key three or four times, until the door activates.

That repeated arrow press in the last step looks wrong and it is correct. Give it the full three or four presses before deciding it did not take.

Reading the keypad LED saves a lot of guessing:

• Success: the LED blinks slowly and the number pad backlight stays lit for about 15 seconds.
• Bad entry: the LED, the PROGRAM key and the number pad backlight all flash rapidly. That is the keypad telling you it rejected the input, which is different from the opener not responding.
• Factory reset the keypad: press and hold PROGRAM and the UP/DOWN keys together for about 5 seconds. The LED flashes twice and all lights go out. Do this first on any keypad that came with a house you just bought, or any keypad that has been sitting in a drawer.

On model compatibility: the GK-R keypad is sold as working with both newer and older Genie openers, and the GK-BX is listed as working with Genie type 1, type 2 and type 3 controls. If you are buying a replacement and you are unsure of your generation, the broadly compatible models save you a return trip. If you would rather it just be done correctly the first time, keypad installation is a short visit.

Erasing Every Remote, and When You Should

This is the procedure for a house you just bought, a remote you lost, or a keypad PIN somebody else knows.

Understand what this does and does not do. It wipes every remote, keypad and built-in car button the opener has ever learned. After it, nothing opens your door by radio until you reprogram it, so do not run this procedure on your way out the door. Reprogram your own devices immediately afterward, in daylight, with the remotes in hand.

There is one thing it does not touch, and it matters if the opener is Wi-Fi connected. Erasing the radio memory does not remove the opener from anyone's smartphone account, because that pairing lives with the manufacturer rather than in the motor head. If you bought a house with a connected opener, the radio wipe is only half the job. The account side has to be cleared separately. We covered the equivalent problem on the other major brand in our guide to resetting a LiftMaster opener, and the principle carries across brands: the radio and the app are two different systems with two different reset procedures.

If you have just moved in, put this on the first week list alongside changing the locks. An opener that has been in service for years has an unknown number of remotes paired to it, including ones sold with a previous vehicle.

When It Is Not the Programming

Before you run the procedure a fourth time, check whether you are solving the wrong problem. These are the ones we get called out for after someone has spent an evening reprogramming.

• A dead or weak remote battery. The tell is that it works from three feet and not from thirty. A remote that works closer but not farther is a transmitter power problem, not a pairing problem, and no amount of reprogramming fixes it.
• The lock button on the wall console is on. Every brand has this feature, it is meant for vacations, and it deliberately disables all remotes while the wall button keeps working. If the wall button opens the door and nothing else does, look here before you look anywhere else.
• An LED bulb in the opener. This is the modern range killer. Many LED and CFL bulbs emit radio noise across the exact bands garage openers use, at 315 MHz and 390 MHz on Genie units. Swap in a regular incandescent or a bulb specifically rated for garage door openers and test again. We see this constantly.
• The antenna wire. It should hang straight down, loose and uncoiled. Tucked up, coiled, or pinched against the motor head housing, it costs real range.
• The safety sensors. If the door opens but will not stay closed, or reverses, that is a sensor or travel issue and has nothing to do with the remote. Our write-up on testing your safety sensors covers the 30 second check, and sensor repair is the fix when alignment is not the issue.
• The receiver board itself. If no remote and no keypad will program, in any procedure, on either generation, and the wall button still works, the radio receiver in the logic board has likely failed. This is the one genuine hardware failure on the list. Opener repair is usually a board replacement rather than a new opener.

A useful triage order: wall button works but nothing wireless does means lock button or receiver. One remote fails but another works means battery or that specific remote. Everything fails including the wall button means power or logic board. That sequence costs you two minutes and often ends the search.

A Few Things Specific to Florida Garages

Programming problems here have a couple of local flavors worth knowing about.

• Heat kills remote batteries faster than the spec sheet suggests. A remote clipped to a visor in a car parked outside all summer in Polk County is living somewhere well above its rated storage temperature. If you are replacing remote batteries more than about once a year, that is why, and moving the remote off the windshield line helps.
• Humidity and the wall console. Corrosion on low voltage terminals at the wall button and at the sensor connections is common in unconditioned Florida garages, and it produces intermittent faults that look exactly like programming problems.
• After a power flicker. Summer storm season means lots of brief outages. Most Genie openers hold their radio memory through a power loss, but a surge can scramble travel settings or, occasionally, the memory itself. If several things went odd at once right after a storm, suspect the event rather than your procedure, and have the travel limits and force settings checked rather than just reprogramming remotes.

When to Call Instead

Programming a remote is genuinely a homeowner job, and if the steps above got you there, you are done and you owe nobody anything. Call when the symptom is not actually radio: a door that reverses, a door that will not stay closed, grinding, a door that moves crooked, or any situation where you would need to touch travel limits or spring tension.

That last one is the real line. Travel limits and force settings interact with the safety reverse system, and a door adjusted to close with too much force is a genuine hazard rather than an inconvenience. It is worth having checked as part of a safety inspection if it has been a while.

We work across Lakeland, Winter Haven, Haines City and Bartow. If you want the remote handled along with a general once-over, remote programming is usually folded into a service visit rather than billed as its own trip. If your opener is old enough that parts are getting scarce, our comparison of LiftMaster, Chamberlain and Genie is a better starting point than a programming guide.

And if you have run every procedure above twice and the door still ignores you, get in touch. It is usually the receiver, it is usually a board, and it is usually cheaper than people expect.
